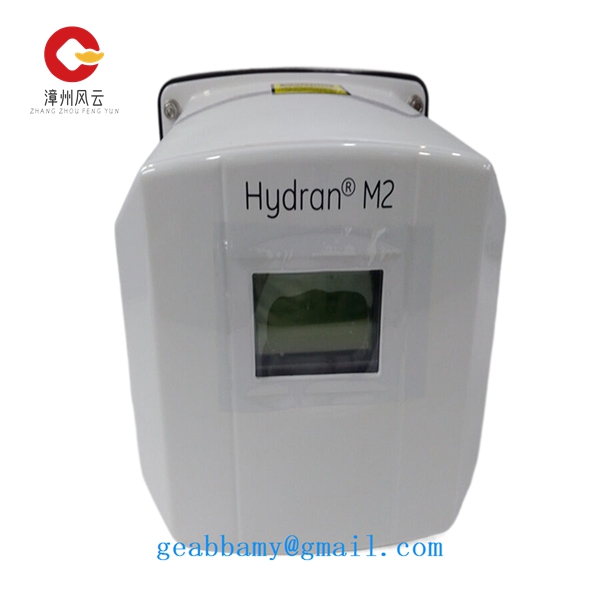

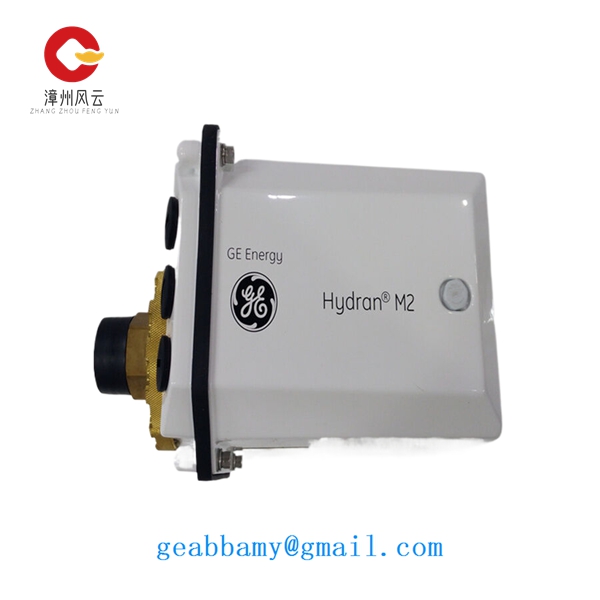

Hydran M2-X是经过现场验证的Hydran DGA监控解决方案系列的下一代产品，提供气体和湿度水平的连续监控，以提醒用户正在发展的故障，并最大限度地降低意外停机的风险。M2-X建立在通用电气公司强大的领域专业知识的基础上，提供一个优化的，低维护的监测设备，延长传感器寿命。

　　Hydran M2-X也有UL认证的HazLoc版本(零件号:M2-X-HZ ),用于安装在指定为I级，2区的危险场所的变压器上

　　Hydran传感器可作为传统Hydran复合气体(H2、一氧化碳、碳2H2，C2H4)传感器或单独的氢(H2)传感器。此外，它还能跟踪油中的水分(读数单位为%RH和ppm)，并与各种变压器油兼容(标准矿物绝缘油和较新的天然和合成酯基液体)。

　　主要优势

　　外形小巧，无移动部件，维护成本低

　　支持资产性能管理(APM)软件分析，实现车队级部署

　　使用矿物绝缘油或酯基液体(天然和合成)的变压器的状态监测

　　除了DGA监控，通过传感器的连接，Hydran M2-X还可以监控其他参数，如顶层油温、负载电流，并通过使用基于IEEE的数学模型，可以进一步了解不断变化的变压器状况

　　为APM战略提供关键数据，促进现场干预和维护活动的规划

　　M2-X-HZ型经过认证，适用于在正常操作条件下不太可能存在可燃气体、蒸汽或液体的可燃浓度，但风险仍然存在的危险场所。

　　特征

　　易于现场升级，以接受模拟信号并监控其他关键变压器参数

　　计算绕组热点和其他IEEE变压器模型，以增强对变压器状况的诊断(取决于安装的传感器)

　　易于安装在现有的单个变压器阀上，通常不需要断电

　　集成显示屏和键盘，简化本地用户交互和数据可视化

　　内置水分传感器可测量油中的水分，这对于识别纸张降解和垫圈泄漏至关重要

　　与GE广受好评的Perception软件兼容，用于下载、趋势分析和分析变压器健康数据

　　应用程序

　　大中型变压器

　　公用和工业变压器

　　传输变压器

The Hydran M2-X is the next generation product of the Hydran DGA monitoring solution series, which has been validated on-site. It provides continuous monitoring of gas and humidity levels to alert users of developing faults and minimize the risk of unexpected shutdowns. M2-X is built on General Electric's strong expertise in the field, providing an optimized, low maintenance monitoring device that extends sensor life.

The Hydran M2-X also has a UL certified HazLoc version (part number: M2-X-HZ) for installation on transformers designated as Class I, Zone 2 hazardous locations

Hydran sensors can be used as traditional Hydran composite gas (H2, carbon monoxide, C2H4) sensors or standalone hydrogen (H2) sensors. In addition, it can track the moisture in the oil (with readings in% RH and ppm) and is compatible with various transformer oils (standard mineral insulating oils and newer natural and synthetic ester based liquids).

Main advantages

Compact appearance, no moving parts, low maintenance cost

Support asset performance management (APM) software analysis to achieve fleet level deployment

State monitoring of transformers using mineral insulating oil or ester based liquids (natural and synthetic)

In addition to DGA monitoring, the Hydran M2-X can also monitor other parameters such as top oil temperature and load current through sensor connections, and further understand the constantly changing transformer condition by using IEEE based mathematical models

Provide key data for APM strategy to facilitate planning of on-site interventions and maintenance activities

The M2-X-HZ type has been certified and is suitable for hazardous locations where combustible concentrations of gases, vapors, or liquids are unlikely to exist under normal operating conditions, but risks still exist.

Features

Easy to upgrade on-site to receive analog signals and monitor other key transformer parameters

Calculate winding hotspots and other IEEE transformer models to enhance diagnosis of transformer conditions (depending on installed sensors)

Easy to install on existing single transformer valves, usually without the need for power outages

Integrate display screen and keyboard to simplify local user interaction and data visualization

The built-in moisture sensor can measure the moisture in the oil, which is crucial for identifying paper degradation and gasket leakage

Compatible with GE's highly acclaimed Perception software for downloading, trending, and analyzing transformer health data

Application Program

Large and medium-sized transformers

Public and industrial transformers

Transmission Transformer
